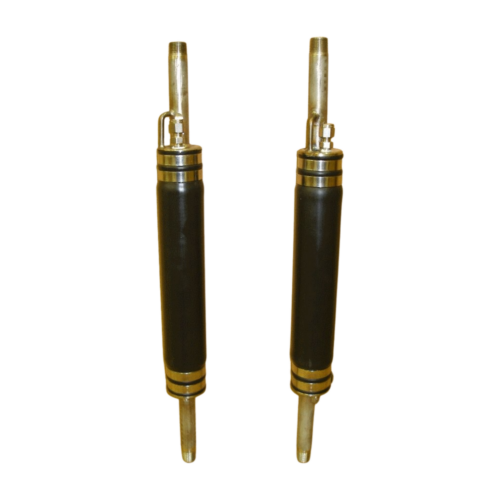

The SpOILer Controllerless Recovery System (CRS) is a highly efficient solution for recovering floating hydrocarbons from wells and sumps 2″ (5 cm) and larger. It uses an internally regulated pneumatic bladder pump paired with a floating skimmer to continuously remove product without external controllers.
The system is designed to handle changing site conditions and can follow water level fluctuations of over 16″ (41 cm) when fitted with a 4″ (10 cm) skimmer. It consistently recovers product down to a thin sheen. Its versatile design makes it suitable for many applications. Interchangeable skimmers allow recovery of a wide range of products from light fuels like gasoline to heavier oils such as gear oil across multiple travel ranges.
Please see below for brochure:
Geotech_Spoiler
- Details
- Specifications

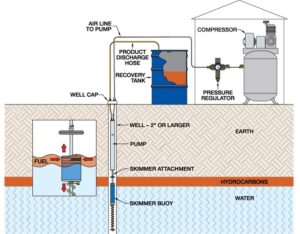

- Installation
- Ordering Information
- No external controller required
- Has a field adjustable cycle timer to optimize cycle rates and conserve energy
- High efficiency, ultra low energy use
- Quick set-up; only two lines to connect
- Different sizes/types of skimmers can be used with the standard pump for varying site conditions, including screened skimmers for extra protection
- Optional oil-less air compressor
2″ Model & 4″ Model Skimmer
| Effective Travel Range: |
2″ Model: 30cm
4″ Model: 41cm |
| Size: |
2″ Model: 90cm L x 4.5cm O.D.
4″ Model: 90cm L x 9.5cm O.D. |
| Size with Optional Screen: |
2″ Model: 90cm L x 4.7cm O.D.
4″ Model: 90cm L x 9.7cm O.D. |
| Weight: |
2″ Model: 0.8kg
4″ Model: 1kg |
| Weight with Optional Screen: |
2″ Model: 1.4kg
4″ Model: 2kg |
The Geotech SpOILer controllerless pump operates at the most efficient intake discharge cycles with minimum
air consumption.
The system is flexible for use at different sites, with skimmers available to recover product ranging from gasoline to gear oil and several travel ranges available.
| Item Code: |
Description: |
| GT86020001 |
Test Kit, Hydrocarbon Viscosity |
| GT56600010 |
Assembly Pump, Spoiler |
Skimmer Options:
| GT56600054 |
Skimmer 2″, 100m with screen |
| GT56600055 |
Skimmer 4″, 100m with screen |
| GT56600071 |
Skimmer 2″, 60m with screen |
| GT56600072 |
Skimmer 4″, 60m, with screen |
Well Caps:
| GT86600061 |
Well Cap 2″, slip with strain relief fittings |
| GT86600062 |
Well Cap 4″, slip with strain relief fittings |
| GT86600183 |
Well Cap 6″, slip with strain relief fittings |
*Tubing also available. Please contact sales@fieldtechsoln.com for more details.
