- Memory – 128,000 data sets (depth and temperature of water)
- Download Speed – 21,333.33 data sets per minute
- Expected Battery Life – up to 15 years (depending on usage)
- 3 Year Warranty
- Calibration Certificate with each logger

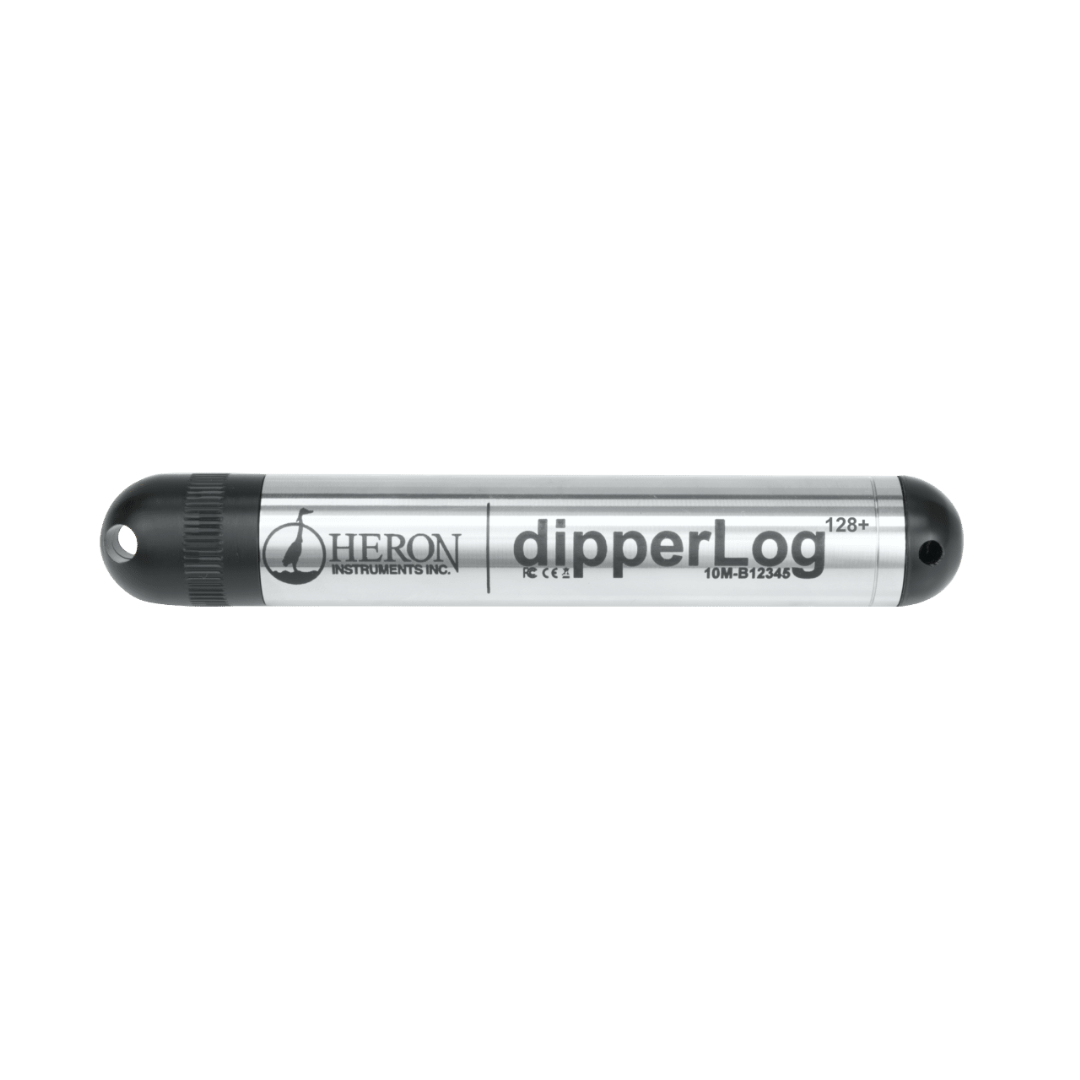

- Machined, 316 marine grade stainless steel body and transducer
- Able to convert deployment options easily in the field
Suspended Version: Install the logger using a suspension cord and simply pull the logger up, connect to a laptop or tablet with a P.C. Communication Cable and retrieve your data. Real time readings are not available with this option.
Direct Read Version: This is the least labour-intensive model for groundwater data logging. The data logger is suspended on a direct read cable, which establishes a connection to the data logger at the wellhead. Programming, downloading, stopping and starting data collection can be done while the logger is deployed. Just connect your laptop or Windows Tablet at the wellhead.
Reel Version: An ideal option when transporting your data logger from site to site for pump and slug tests or any other short-term deployment. Programming and downloading of the data is capable via the connection on the face plate on the reel.
Real time readings are available with this option.
barLog: A barometric logger, that is used to automatically compensate readings stored on the dipperLog for changes in barometric pressure (for absolute version). Recommended for long term monitoring or where more than one logger is deployed within a 5 km radius.
Pressure Range is determined by the maximum height of water above the transducer.
For Suspended and Direct Read Versions:
| H54128-B |
dipperLog 128+ (B) 10m-30ft (recommended for water height of 1-9 metres) |
| H54128-C |
dipperLog 128+ (C) 30m-100ft
(recommended for water height of 10-29 metres) |
| H54128-D |
dipperLog 128+ (D) 60m-200ft
(recommended for water height of 30-59 metres) |
| H54128-E |
dipperLog 128+ (E) 120m-400ft
(recommended for water height of 60-119 metres) |
For Reel Versions:
Standard ( < 300m/1000ft)
Large ( > 300m/1000ft)
| H54128T-B-STD |
dipperLog 128+ (B) 10m-30ft STANDARD
(recommended for water height of 1-9 metres) |
| H54128T-C-STD |
dipperLog 128+ (C) 30m-100ft STANDARD
(recommended for water height of 10-29 metres) |
| H54128T-D-STD |
dipperLog 128+ (D) 60m-200ft STANDARD
(recommended for water height of 30-59 metres) |
| H54128T-E-STD |
dipperLog 128+ (E) 120m-400ft STANDARD
(recommended for water height of 60-119 metres) |
| H54128T-B-LRG |
dipperLog 128+ (B) 10m-30ft LARGE
(recommended for water height of 1-9 metres) |
| H54128T-C-LRG |
dipperLog 128+ (C) 30m-100ft LARGE
(recommended for water height of 10-29 metres) |
| H54128T-D-LRG |
dipperLog 128+ (D) 60m-200ft LARGE
(recommended for water height of 30-59 metres) |
| H54128T-E-LRG |
dipperLog 128+ (E) 120m-400ft LARGE
(recommended for water height of 60-119 metres) |
Accessories and Options:
PC Communication Cable – PN# H5009
Software – PN# H5008
This cable is necessary to establish a connection between the software and the dipperLog. It connects via the USB port in your laptop or other field device, enabling you to program, launch and download data with ease. This cable can be connected either directly to the dipperLog, to the well head or to the face of the reel.
barLog – PN# H5116
A barometric logger is used to automatically compensate readings stored on the dipperLog for changes in barometric pressure (for absolute version). The barLog is recommended for long term monitoring or where more than one logger is deployed within a 5 km radius.
dipperLog Maintenance Kit – PN# H5024
Contains Alconox Powder, O-Rings, O-Ring Applicator Guide & Pick, Cleaning Cloth and Rubber Gloves.
Suspension Cord
(Required for Suspended Version)
PN# H5025 75m Polyethylene Suspension Cord for deployment of dipperLog and barLog.
PN# H5026 300m Polyethylene Suspension Cord for deployment of dipperLog and barLog.
Absolute Direct Read Cable Kits
(Required for Direct Read Version)
PN# H5110 2m/5ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5111 5m/15ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5119 10m/30ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5112 15m/50ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5113 30m/100ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5114 45m/150ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5115 60m/200ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5117 75m/250ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5118 100m/300ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5120 150m/500ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5121 225m/750ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
PN# H5122 280m/925ft x Absolute Direct Read Cable, Well Head Reader, Mounting Kit
tapNtell Surface Mount Display – PN# H5020
(Optional for Direct Read Version)
The tapNtell is a surface mount weather resistant display accessory for the dipperLog well head readout version. The conical connector end of the tapNtell is attached to the direct read well head and the surface mount display unit can be attached to the side of the casing, fence or pump house (any solid surface). The tapNtell provides an instant real time reading of water level and temperature with a tap of a finger.
SDI-12 Interface Cable – PN# H5021
(Optional for Direct Read Version)
The SDI-12 system enables the dipperLog data to be accessed from remote locations by a central computer base without site visits. The sensors can be interchanged without reprogramming the data recorder with calibration or other information. The power is supplied to the sensors through a third party device that enables telemetric data readings.
Operating Voltage (DC) :: 7.5 – 35 VDC
Supply Current (Stand-by) :: 10µA
Supply Current (Active) :: 1.5mA
Absolute Direct Read Cable Kits
(Required for Reel Version)
PN# H5110NMK 2m/5ft x Absolute Direct Read Cable, Well Head Reader
PN# H5111NMK 5m/15ft x Absolute Direct Read Cable, Well Head Reader
PN# H5119NMK 10m/30ft x Absolute Direct Read Cable, Well Head Reader
PN# H5112NMK 15m/50ft x Absolute Direct Read Cable, Well Head Reader
PN# H5113NMK 30m/100ft x Absolute Direct Read Cable, Well Head Reader
PN# H5114NMK 45m/150ft x Absolute Direct Read Cable, Well Head Reader
PN# H5115NMK 60m/200ft x Absolute Direct Read Cable, Well Head Reader
PN# H5117NMK 75m/250ft x Absolute Direct Read Cable, Well Head Reader
PN# H5118NMK 100m/300ft x Absolute Direct Read Cable, Well Head Reader
PN# H5120NMK 150m/500ft x Absolute Direct Read Cable, Well Head Reader
PN# H5121NMK 225m/750ft x Absolute Direct Read Cable, Well Head Reader
PN# H5122NMK 280m/925ft x Absolute Direct Read Cable, Well Head Reader
