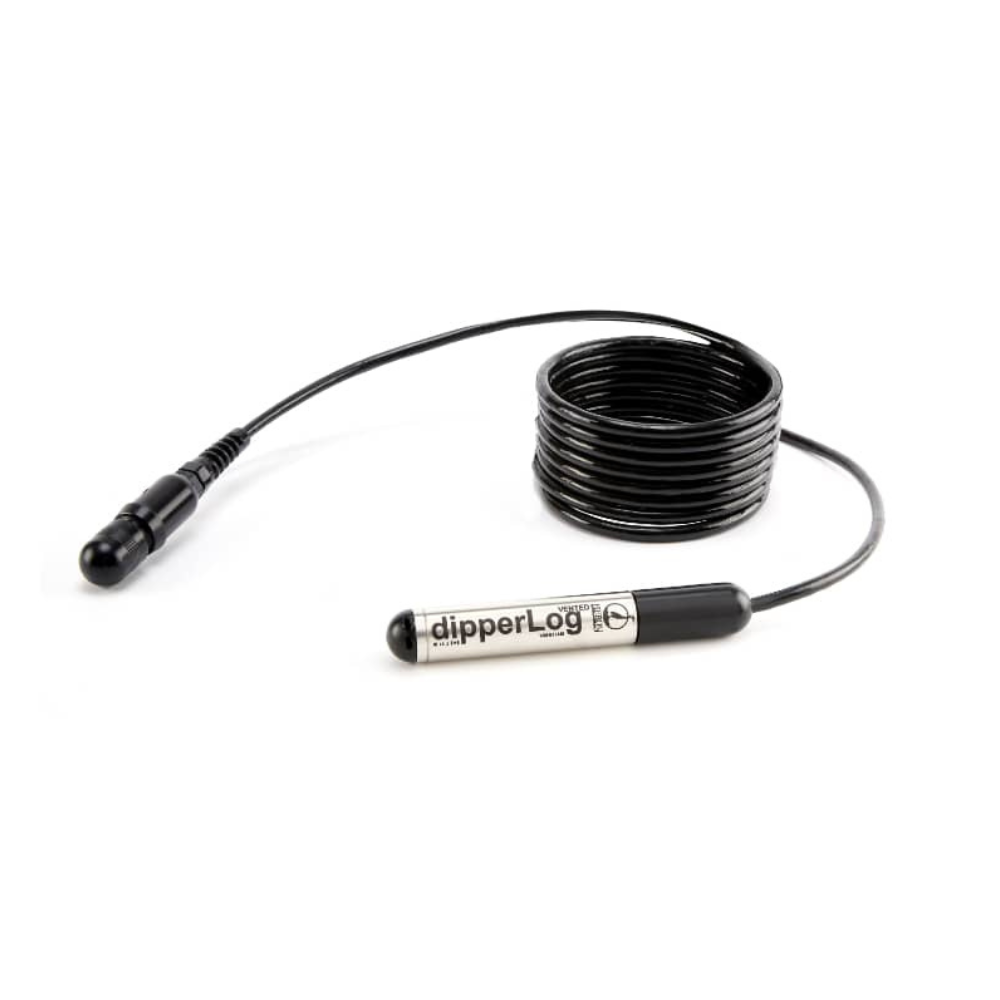

The dipperLog VENTED is a reliable, cost effective solution for measuring groundwater levels and temperature in wells, boreholes and open bodies of water. The dipperLog VENTED, incorporates a gauged transducer that measures pressure exempt from barometric influences which is ideal to use in both long and short term monitoring.

Download Brochure

Description

The vented data logger is NOW removable from the vent cable allowing for easy field replacement and other deployment applications.

vent-cap-adapter-shallow-wetlandThe NEW Vent Cap Adaptor, especially designed for shallow applications, allows for a true collection of water level measurements without performing barometric compensation. By utilizing the Vent Cap Adaptor, a dipperLog VENTED can be deployed in wetlands or overflow ditches without a vent cable. This cap is specifically designed to allow the barometric pressure to be measured accurately when the cap is exposed while sealing the logger from water intrusion when the cap becomes submerged.

All Heron loggers are available in various deployment options:

Direct Read Version – enables you to do real time readings and download your data while the dipperLog is still in the well.

Reel Version – a portable solution, ideal for short term slug and pump testing

The dedicated, intuitive software makes the dipperLog quick and easy to program and launch. Simply recover your data, save your findings in a tabular display and graph, view both parameters side by side in a split screen.

  • Memory – 64,000 data sets (depth and temperature of water)
  • Download Speed – 64,000 data sets in 180 seconds
  • Battery – up to 10 years (depending on usage)
  • Calibration Certificate with each logger
  • Machined, 316 marine grade stainless steel body and transducer
  • Able to convert deployment options easily in the field

Technical Specifications:

Performance
# of Data Points 64,000
Download Speed 21,333.33/min
Accuracy %FS +/- 0.05
Stability %FS/Year +/- 0.20
Operating Features
Pressure Ranges 10m(30ft), 30m(100ft), 60m(200ft), 120m(400ft)
Overpressure Rating 2X
Operating Temperature -20°C to 80°C
Pressure Resolution 0.001
Expected Battery Life Up to 10 Years (depending on usage)
Warranty 3 Years
Physical Characteristics
Wetted Material 316 Stainless Steel & Delrin®
O-Rings Viton™
Transducer Material/Length 316 Stainless Steel Piezoresistive Silicon/130mm
Diameter 22mm
Weight 160g
Deployment Options
Suspended Direct Read
Note: In “Log Time” mode the dipperLog increases the readings from 1 second by an additional 1 second for 255 readings. The final reading interval is 4 min. and 14 sec. and the logger then stops logging. This mode logs for a total of 9 hours before stopping.
Direct Read Cable 6.25mm diameter, Polyurethane jacketed, 4 strand insulated T.C conductors. 1 strand T.C drain line, 2.5mm nylon vent tube. Reinforced with Kevlar and an aluminium shield (Weight 34g/m)
5401-V(shallow) dipperLog VENTED (Shallow) 10m range, recommended for water height of 1-9 metres. Includes vent cap adapter” specifically designed for shallow applications (wetlands etc.).
5401-V(B) dipperLog VENTED (B) 10m range, recommended for water height of 1-9 metres
5402-V dipperLog VENTED (C) 30m range, recommended for water height of 10-29 metres
5403-V dipperLog VENTED (D) 60m range, recommended for water height of 30-59 metres
5404-V dipperLog VENTED (E) 120m range, recommended for water height of 60-119 meters

Accessories and Options:

Vent Cap Adapter for Shallow Wetland Studies – PN# 5035

The NEW Vent Cap Adapter, specially designed for shallow applications, allows for a true collection of water level measurements without performing barometric compensation. By utilizing the Vent Cap Adapter, a dipperLog VENTED can be deployed in wetlands or overflow ditches without a vent cable. This cap is specifically designed to allow the barometric pressure to be measured accurately when the cap is exposed while sealing the logger from water intrusion when the cap becomes submerged.

Attach the NEW Vent Cap Adapter for deployments (without vented cable) used in shallow wetland studies. Only available in 10m/30ft pressure range.


PC Communication Cable – PN# 5009
Software – PN# 5008

This cable is necessary to establish a connection between the software and the dipperLog. It connects via the USB port in your laptop or other field device, enabling you to program, launch and download data with ease. This cable can be connected either directly to the dipperLog, to the well head or to the face of the reel.


tapNtell Surface Mount Display – PN# 5020

The tapNtell is a surface mount weather resistant display accessory for the dipperLog well head readout version. The conical connector end of the tapNtell is attached to the direct read well head and the surface mount display unit can be attached to the side of the casing, fence or pump house (any solid surface). The tapNtell provides an instant real time reading of water level and temperature with a tap of a finger.


showNtell Hand Held Display – PN# 5018

The showNtell is a portable hand held display unit for the dipperLog well head readout version. The showNtell can be carried from well to well, to give an instant real time reading of water level and temperature by simply plugging into the direct read well head. The showNtell does not download or store the data from the logger.


SDI-12 Interface Cable – PN# 5021

The SDI-12 system enables the dipperLog data to be accessed from remote locations by a central computer base without site visits. The sensors can be interchanged without reprogramming the data recorder with calibration or other information. The power is supplied to the sensors through a third party device that enables telemetric data readings.
Operating Voltage (DC) :: 7.5 – 35 VDC
Supply Current (Stand-by) :: 10µA
Supply Current (Active) :: 1.5mA
