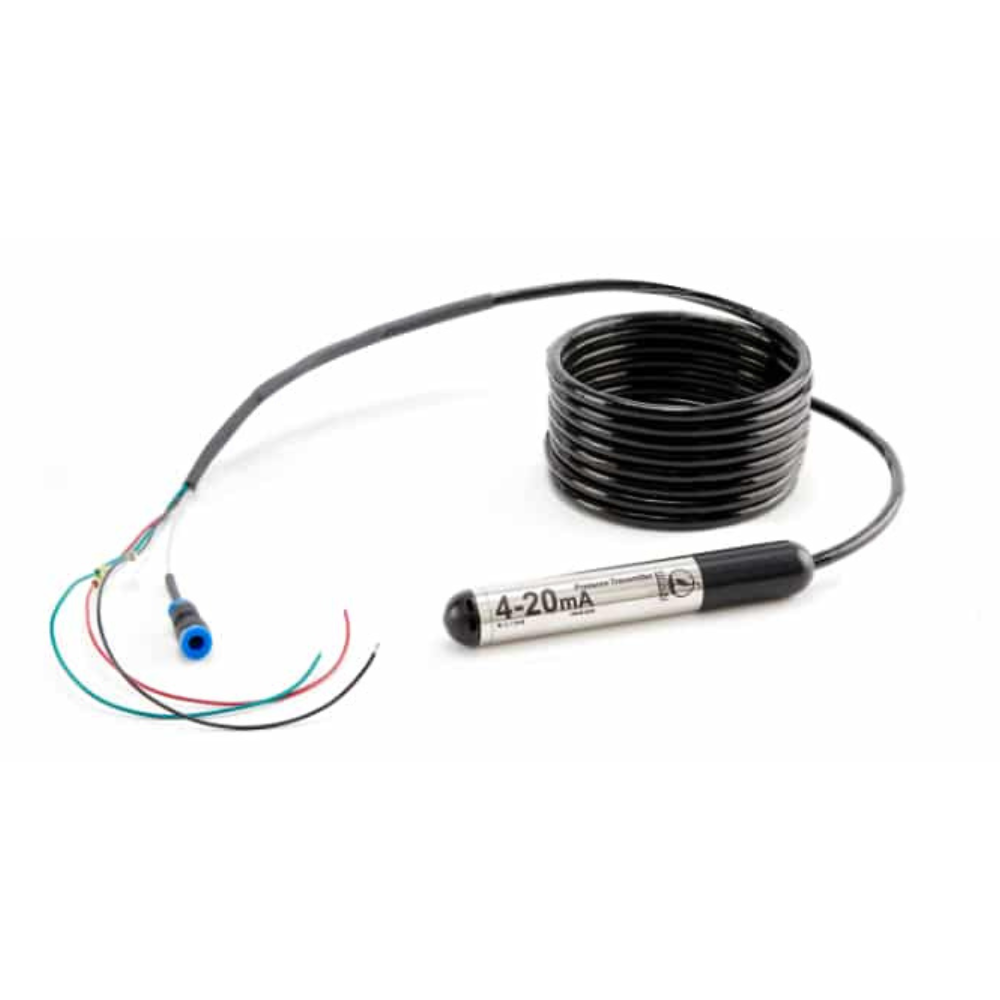

4-20mA Pressure Transmitter

Product ID dipperLogNano-1-1

The Heron 4-20mA Pressure Transmitter is easily integrated into an existing SCADA system, digital display and 3^rd party data logger. It will provide a continuous, accurate water level reading for a wide variety of applications.

A two-wire 4-20mA Pressure Transmitter current configuration is used with the Heron Pressure Transmitter which is the most widely used signal transmission for transducers in industrial environments.

Vented cable provides real time barometric compensation
Simple two-wire connection
Output signal is compatible with most telemetry, SCADA and PLC systems
High noise immunity on long cable runs
Wide range of supply voltage (7.5VDC-35VDC)
High accurate water level measurements
Reverse polarity protected

Details

Technical Specifications

Performance
# of Data Points	N/A
Download Speed	N/A
Accuracy %FS	+/- 0.05
Stability %FS/Year	+/- 0.20

Operating Features
Pressure Ranges	10m(30ft), 30m(100ft), 60m(200ft), 200m(650ft)
Overpressure Rating	2X
Operating Temperature	-20°C to 80°C
Pressure Resolution	0.001
Supply Voltage	7.5VDC – 35VDC
Expected Battery Life	N/A
Warranty	3 Years

Physical Characteristics
Wetted Material	316 Stainless Steel & Delrin®
O-Rings	Viton™
Transducer Material/Length	316 Stainless Steel Piezoresistive Silicon/130mm
Diameter	22mm
Weight	160g

Deployment Options	N/A

Note:	In “Log Time” mode the dipperLog increases the readings from 1 second by an additional 1 second for 255 readings. The final reading interval is 4 min. and 14 sec. and the logger then stops logging. This mode logs for a total of 9 hours before stopping.

Direct Read Cable	6.25mm diameter, Polyurethane jacketed, 4 strand insulated T.C conductors. 1 strand T.C drain line, 2.5mm nylon vent tube. Reinforced with Kevlar and an aluminium shield (Weight 34g/m)

Ordering Information

5027	4-20mA Pressure Transmitter B, recommended for water height of 1-9 meters
5028	4-20mA Pressure Transmitter C, recommended for water height of 10-29 meters
5029	4-20mA Pressure Transmitter D, recommended for water height of 30-59 meters
5030	4-20mA Pressure Transmitter E, recommended for water height of 120-200 meters
5031	Digital Display 4-20mA
5034	Vent Filter
5032	Vented Cable
5008	dipperlog Software

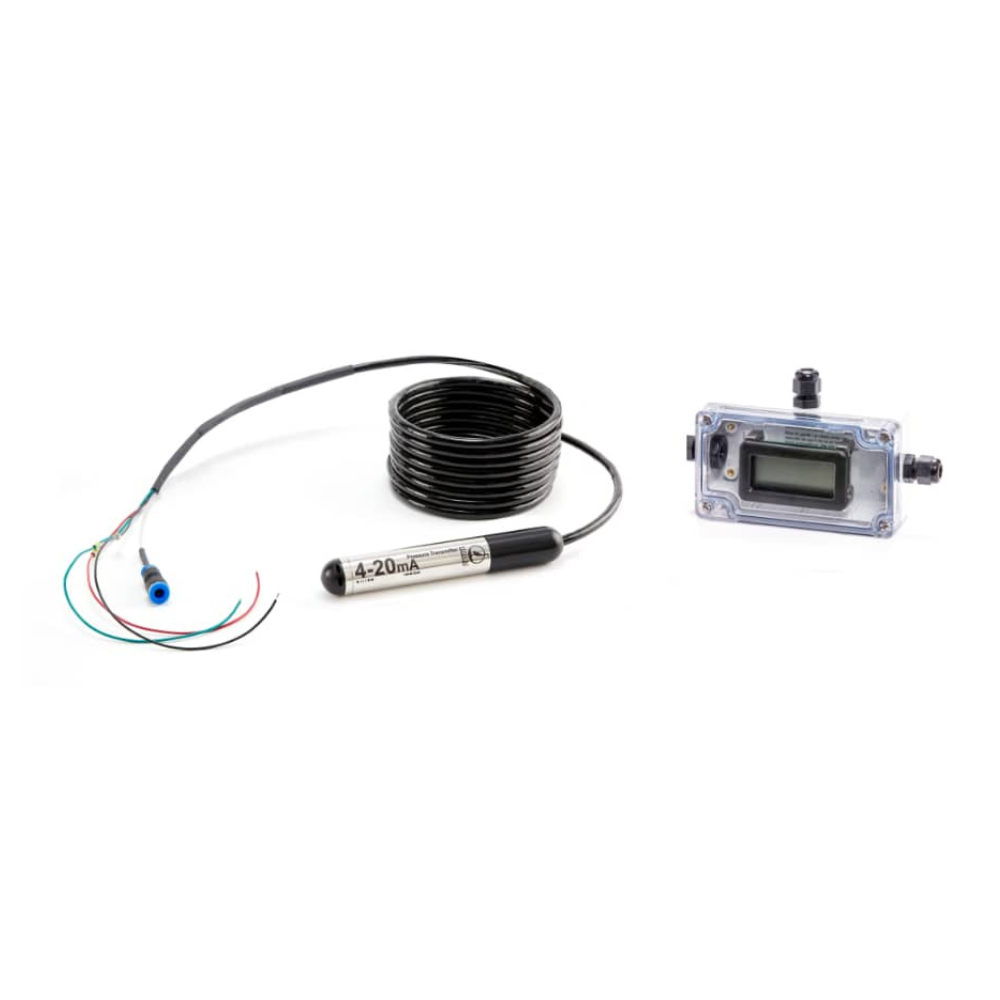

Digital Display 4-20mA – PN# 5031

The Digital Display 4-20mA unit provides real time readings of height of water above the transducer in either meters or feet. Other units of measurements are available upon request. The display is loop powered, there is no need for an extra power supply.

SKU: dipperLogNano-1-1 Categories: Water Level Instrumentation, Water Level Loggers Tags: continuous logging, datalogger, depth, level logger, pump test, slug test, temperature, water level
